Module 1 Formstorming

Weekly Activity Template

Valerii Babachenko

Project 1

Module 1

Circuits and Interaction

Activity 1

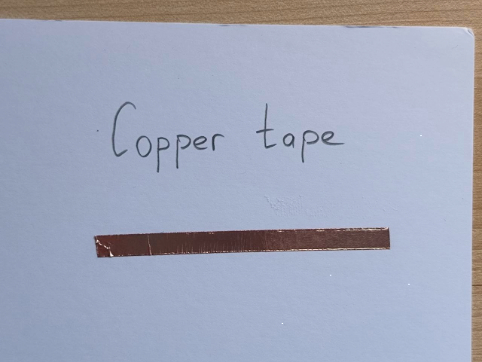

Types of material used in Activity 1: Copper Tape

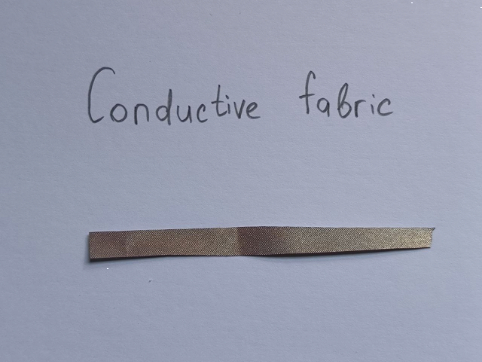

Types of material used in Activity 1: Conductive fabric

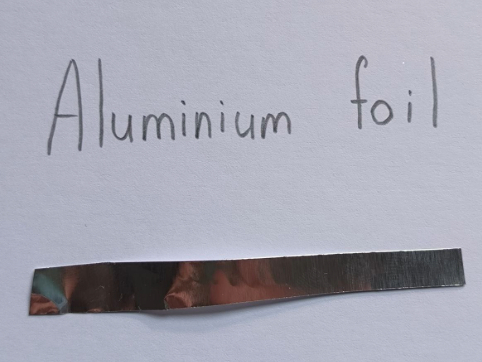

Types of material used in Activity 1: Aluminium foil

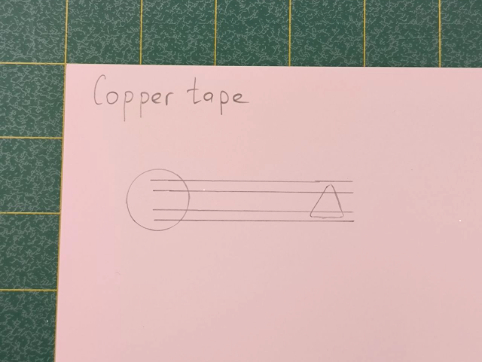

This is a Scheme of the simple circuit

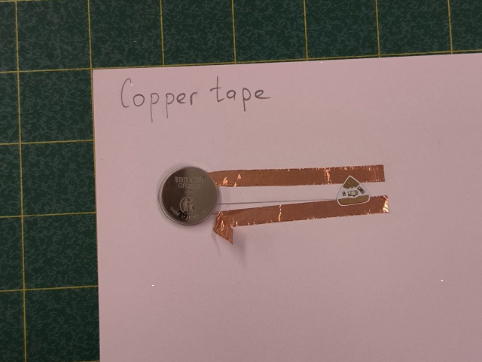

This is a simple circuit (Light OFF)

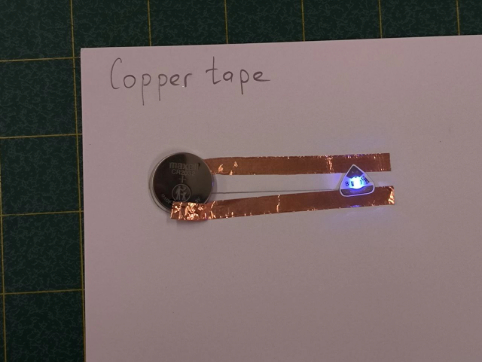

This is a simple circuit (Light ON)

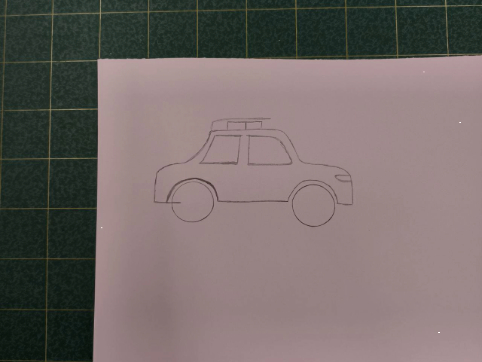

This is a Scheme of the car circuit

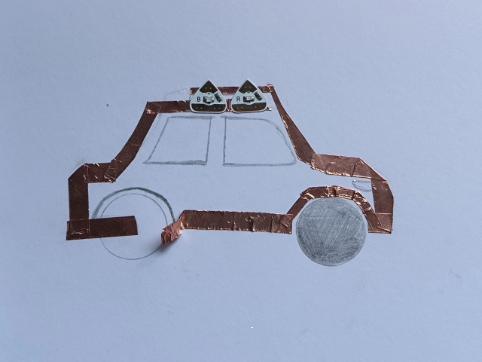

This is the car circuit

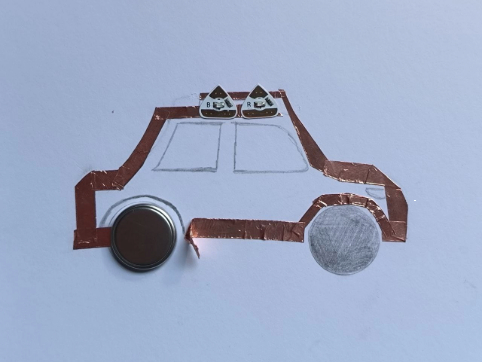

This is a car circuit (Light OFF)

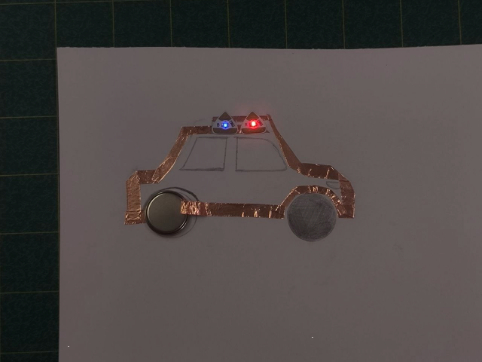

This is a car circuit (Light ON)

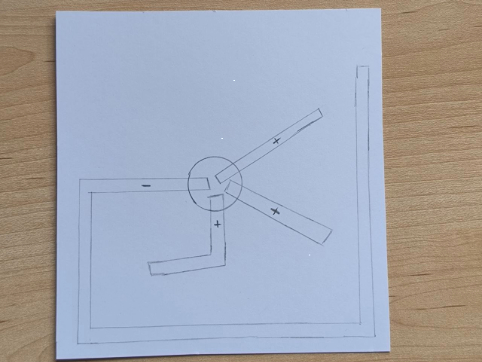

This is a Scheme of the complex circuit

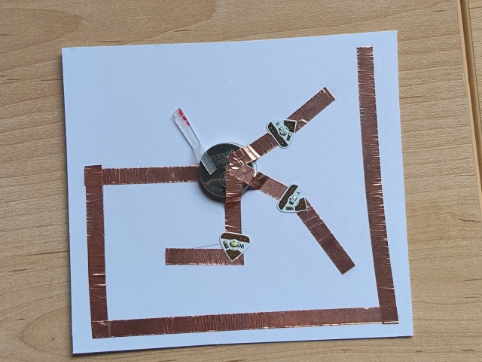

This is a Scheme of the complex circuit (Light OFF)

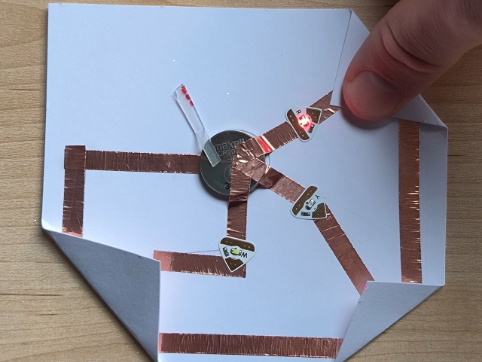

This is a Scheme of the complex circuit (Red Light ON)

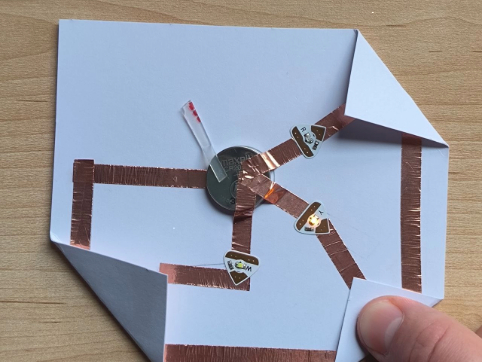

This is a Scheme of the complex circuit (Yellow Light ON)

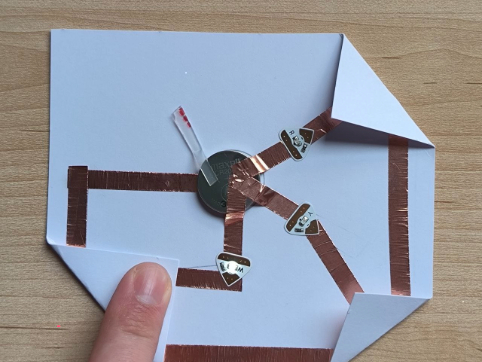

This is a Scheme of the complex circuit (White Light ON)

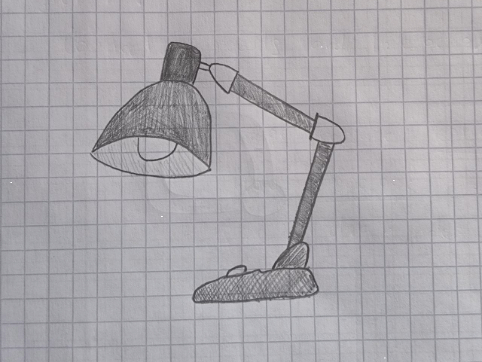

This is a Drawing of the lamp

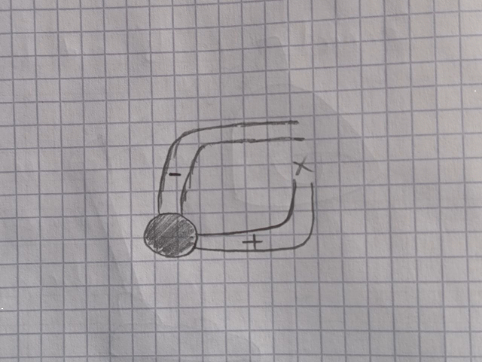

This is a Scheme of the circuit for the lamp drawing

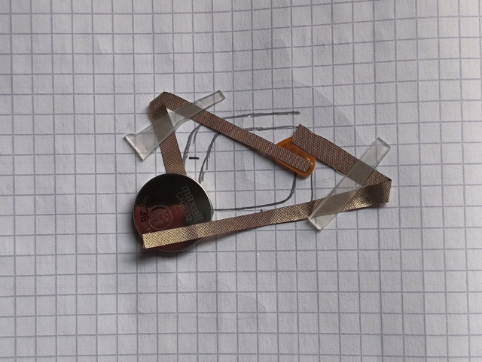

This is a circuit for the lamp drawing

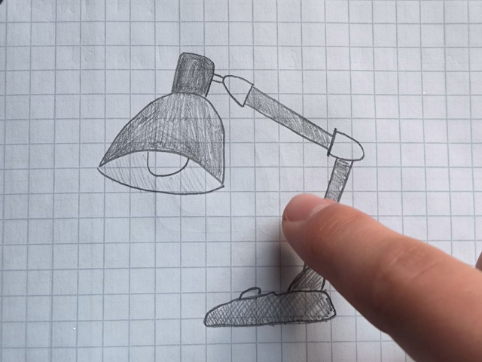

This is a lamp circuit (Light OFF)

This is a lamp circuit (Light ON)

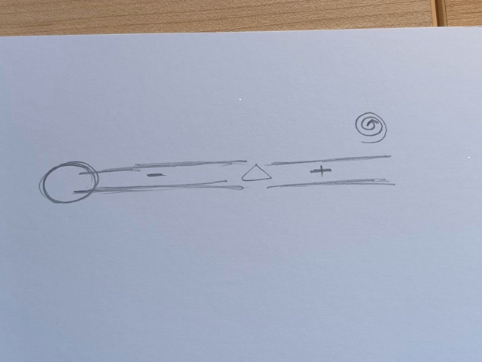

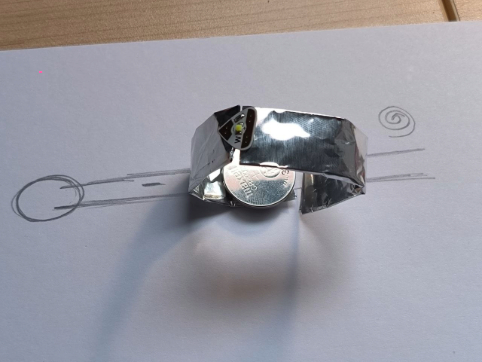

This is a Scheme of the ring circuit

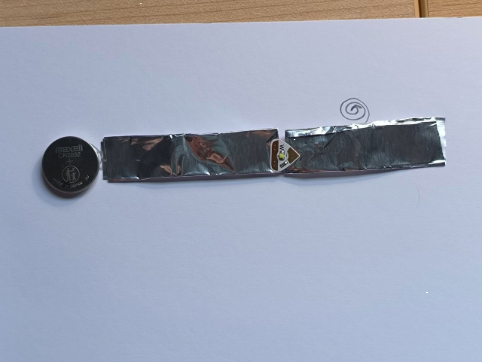

This is a ring circuit (Flat)

This is a ring circuit

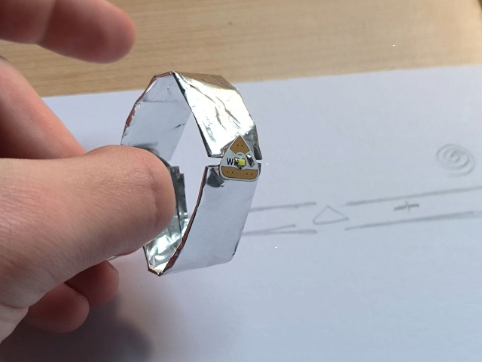

This is a ring circuit (Light OFF)

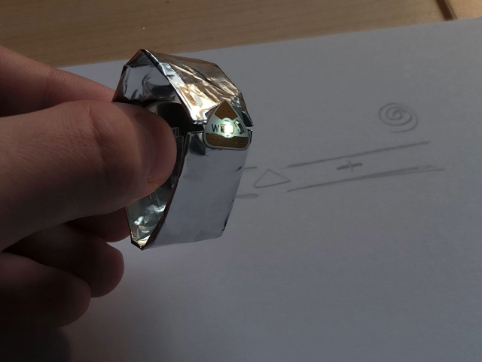

This is a ring circuit (Light ON)

Activity 2

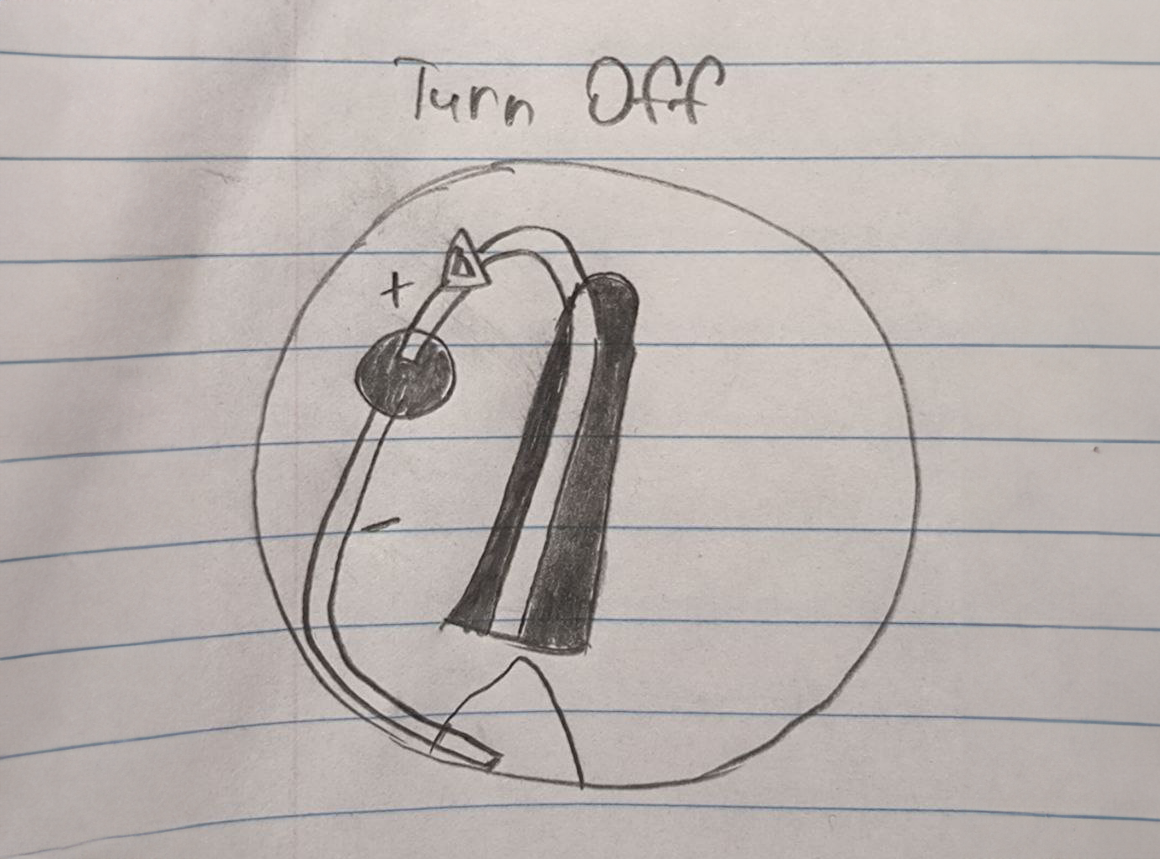

This is a circuit of the Blender lid (Light OFF)

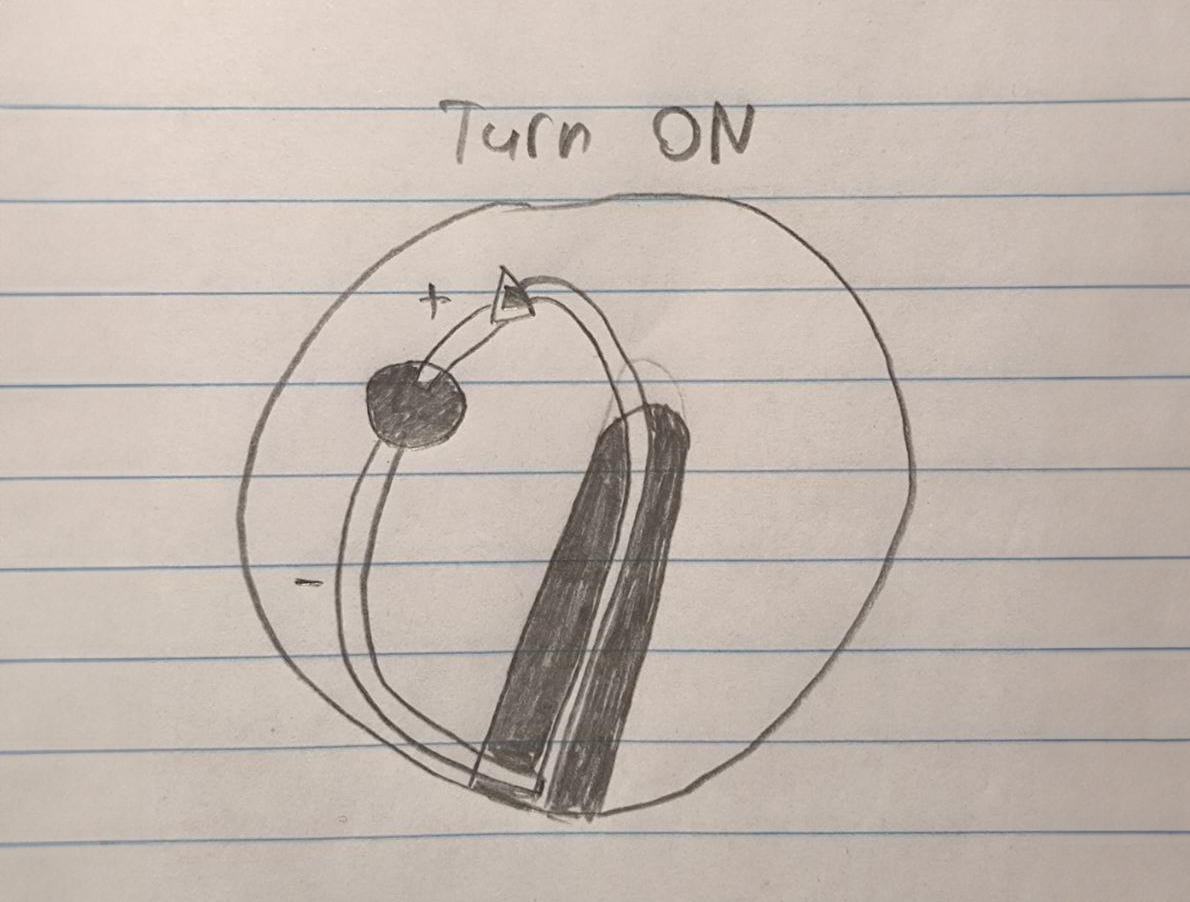

This is a circuit of the Blender lid (Light ON)

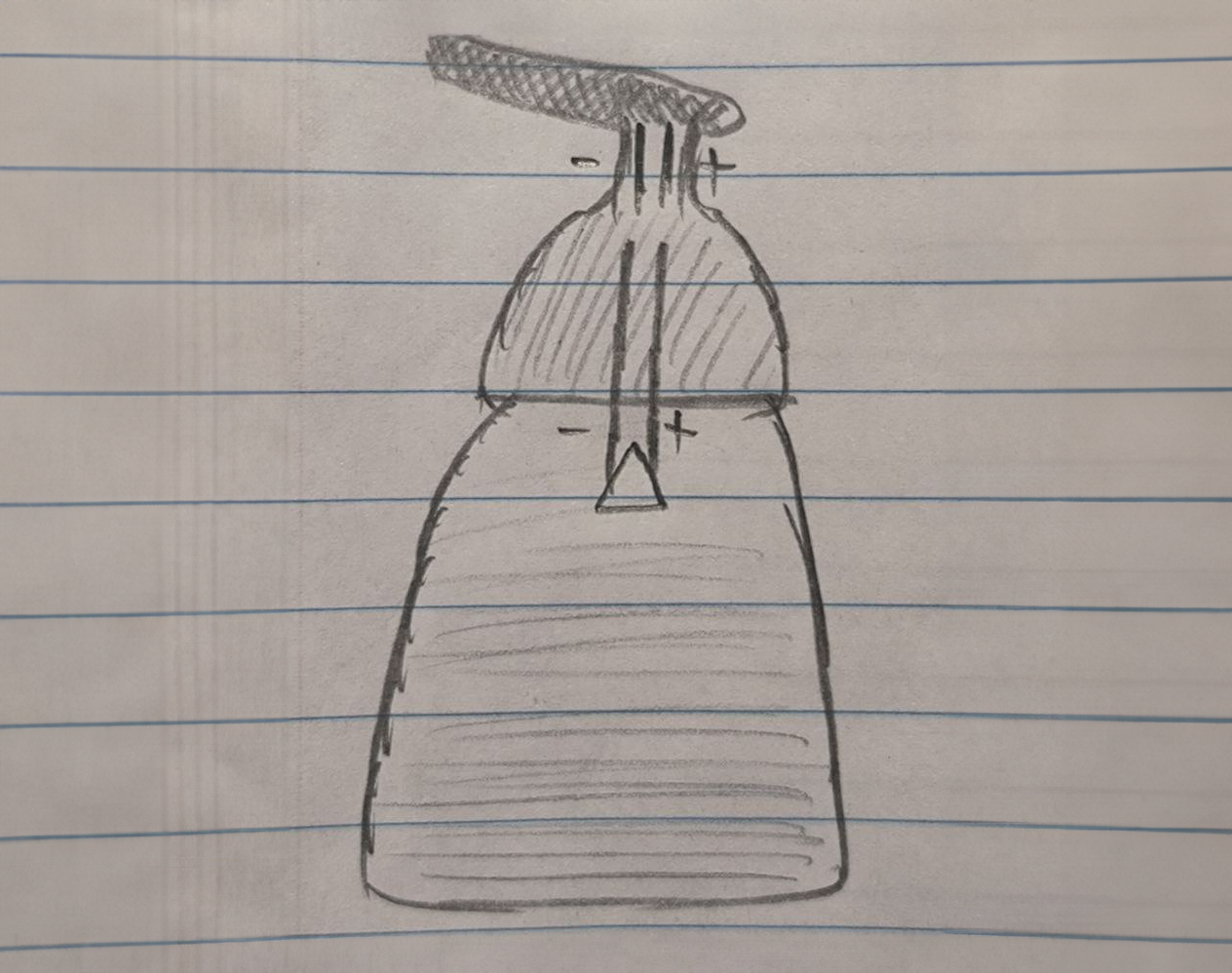

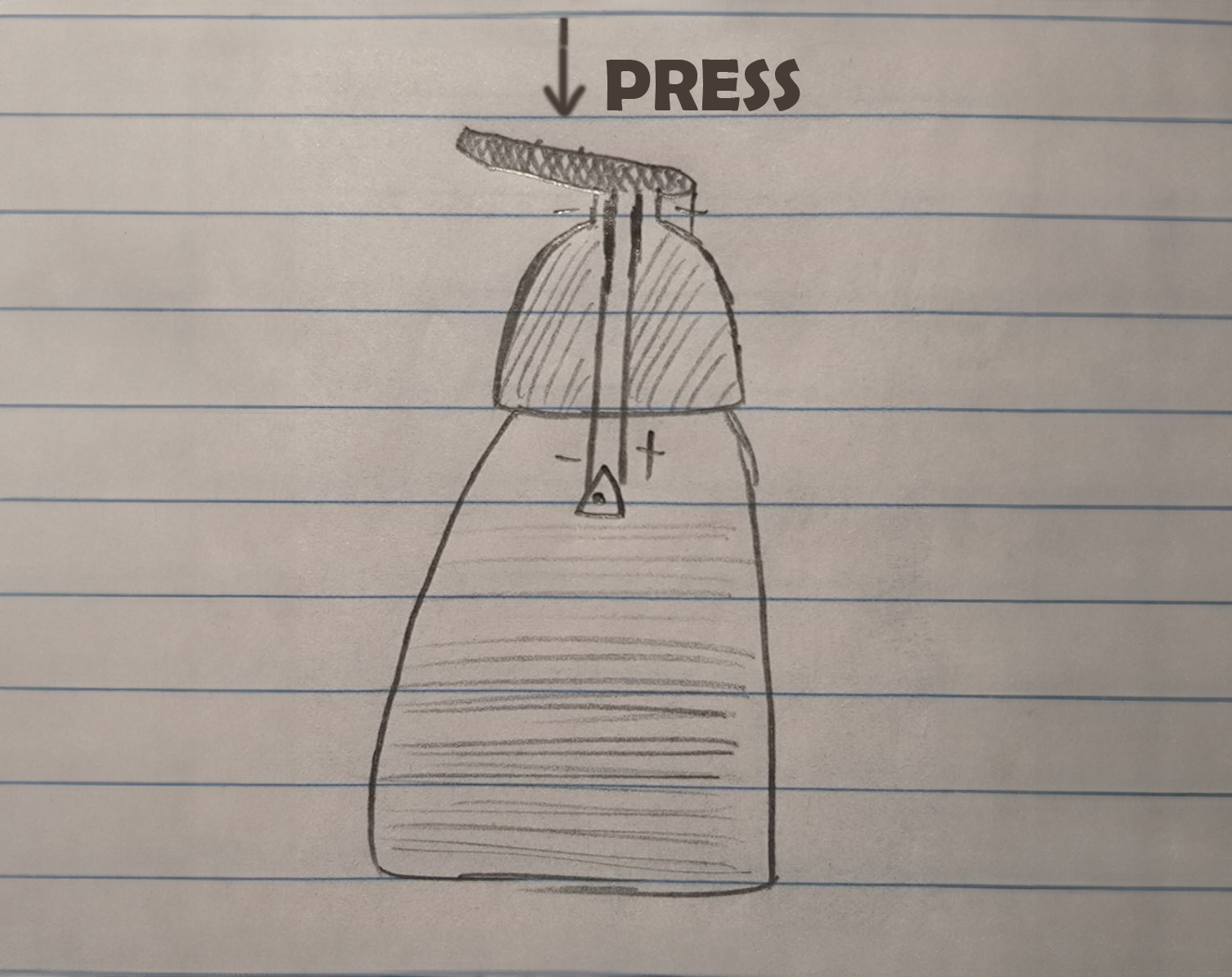

This is a circuit of the soap dispenser (Light OFF)

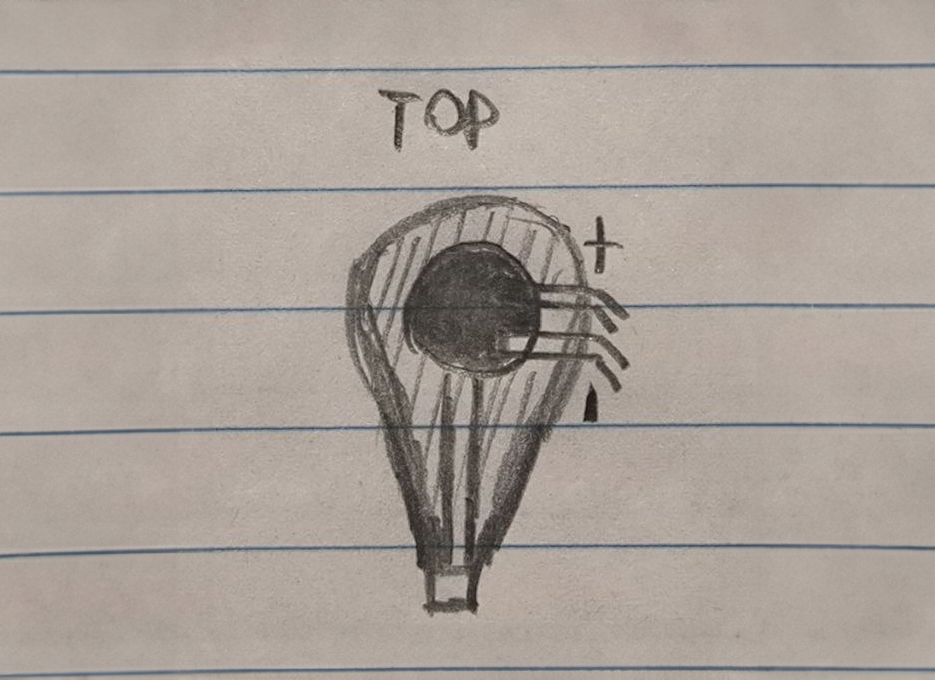

This is a circuit of the soap dispenser (View from the top)

This is a circuit of the soap dispenser (Light ON)

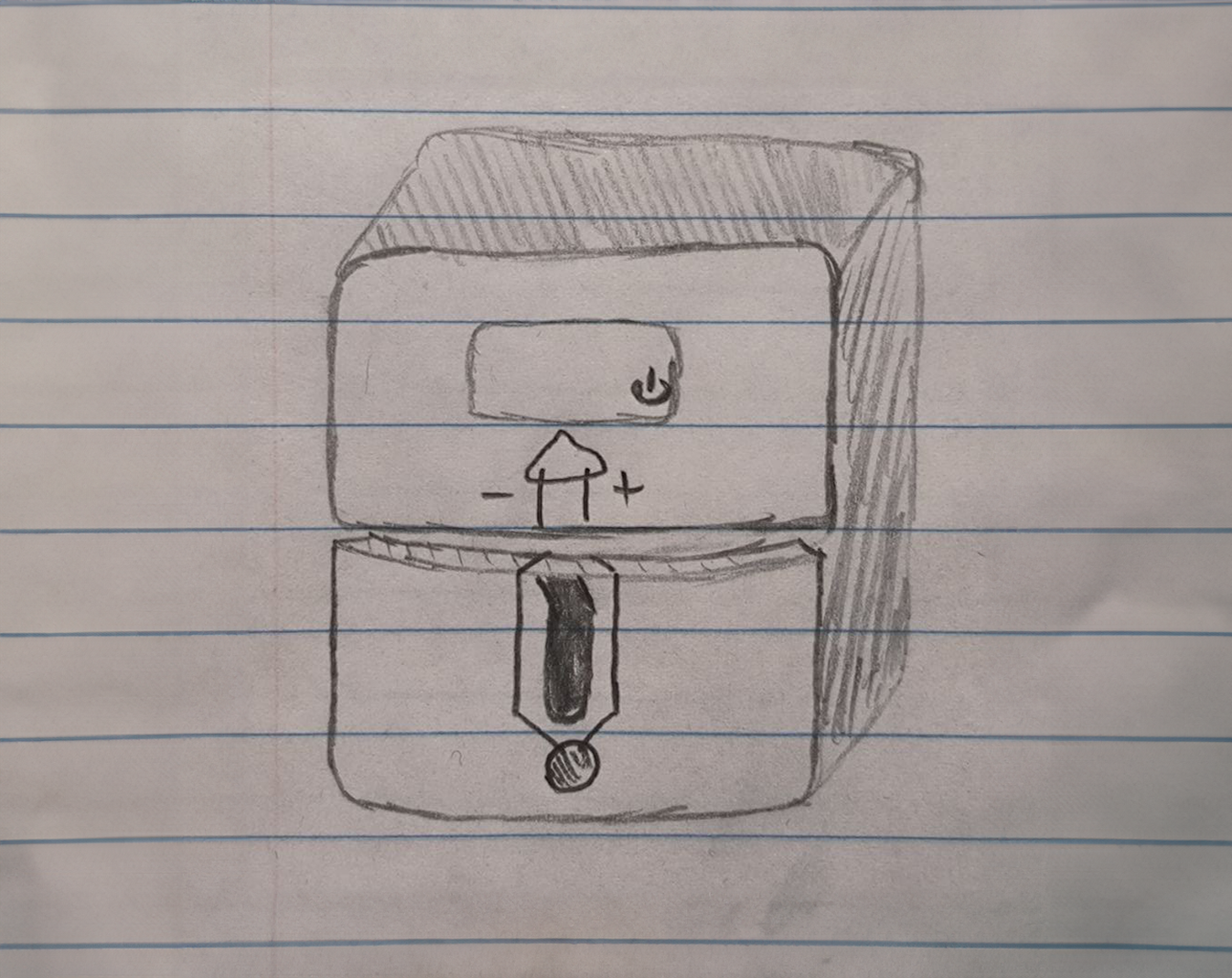

This is a circuit of the airfryer (Light OFF)

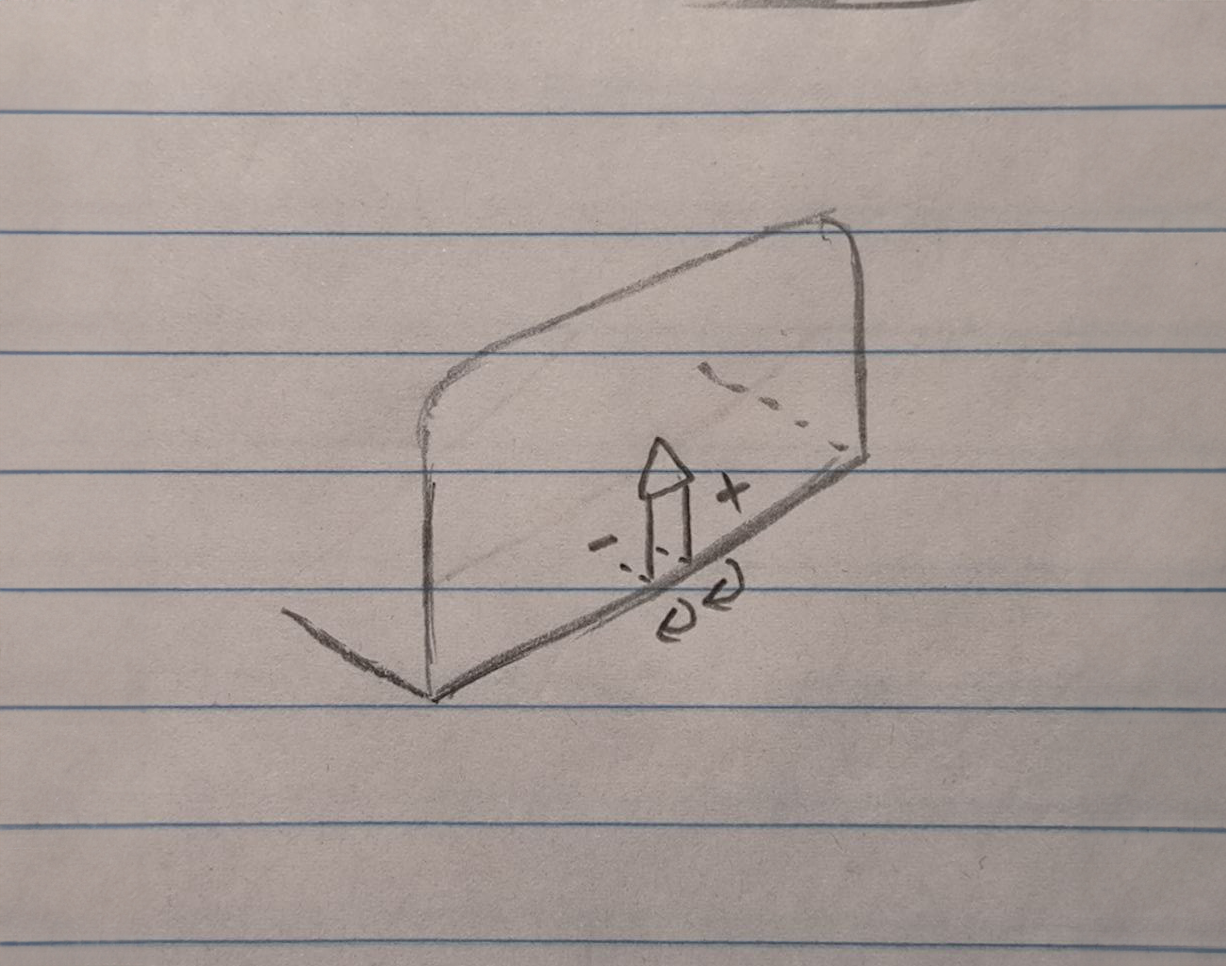

This is a circuit of the airfryer (View from the side)

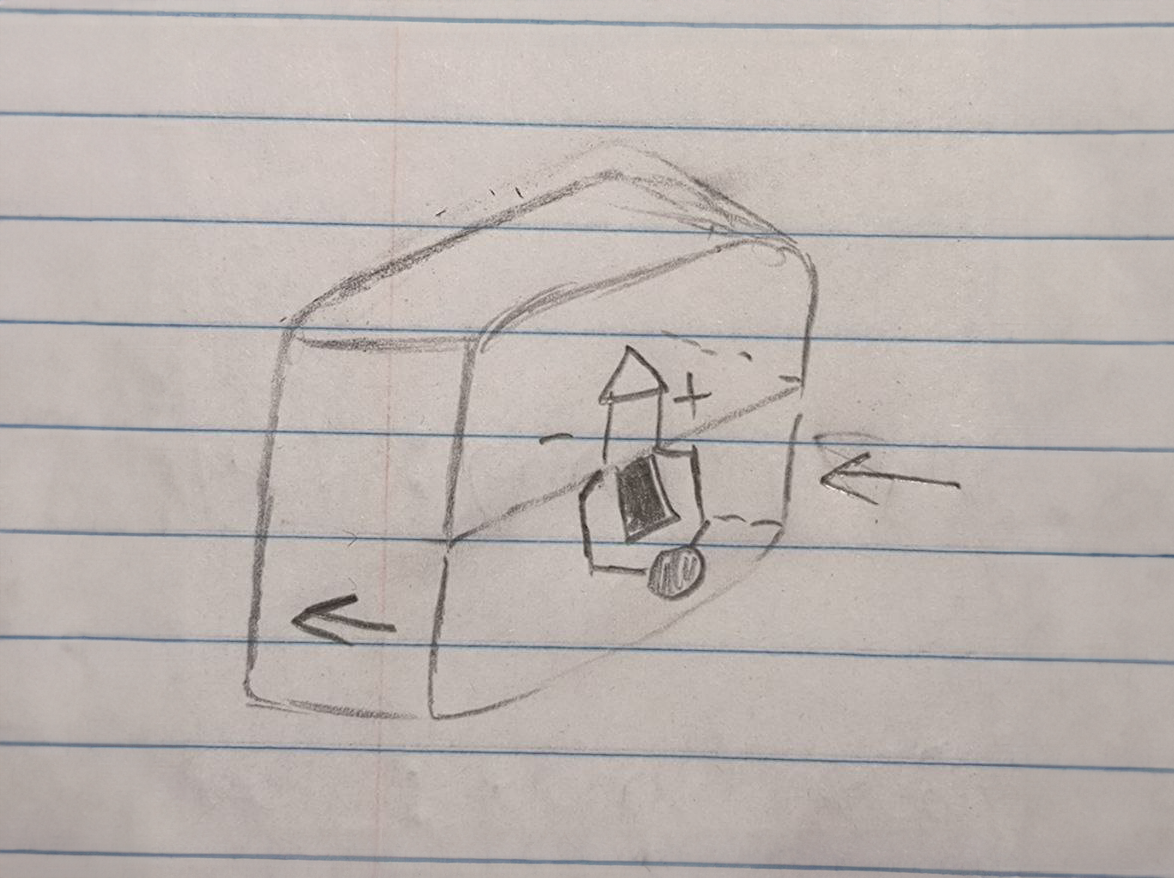

This is a circuit of the airfryer (Light ON)

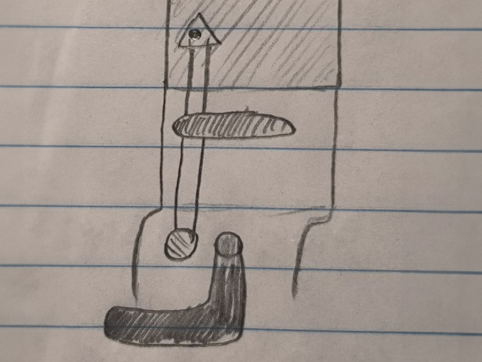

This is a circuit of the door locker (Light OFF)

This is a circuit of the door locker (Light ON)

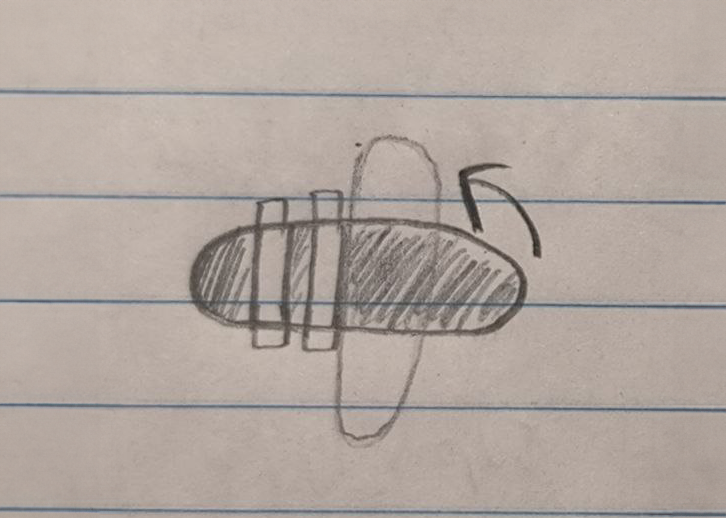

This is a circuit of the door locker (View for the back)

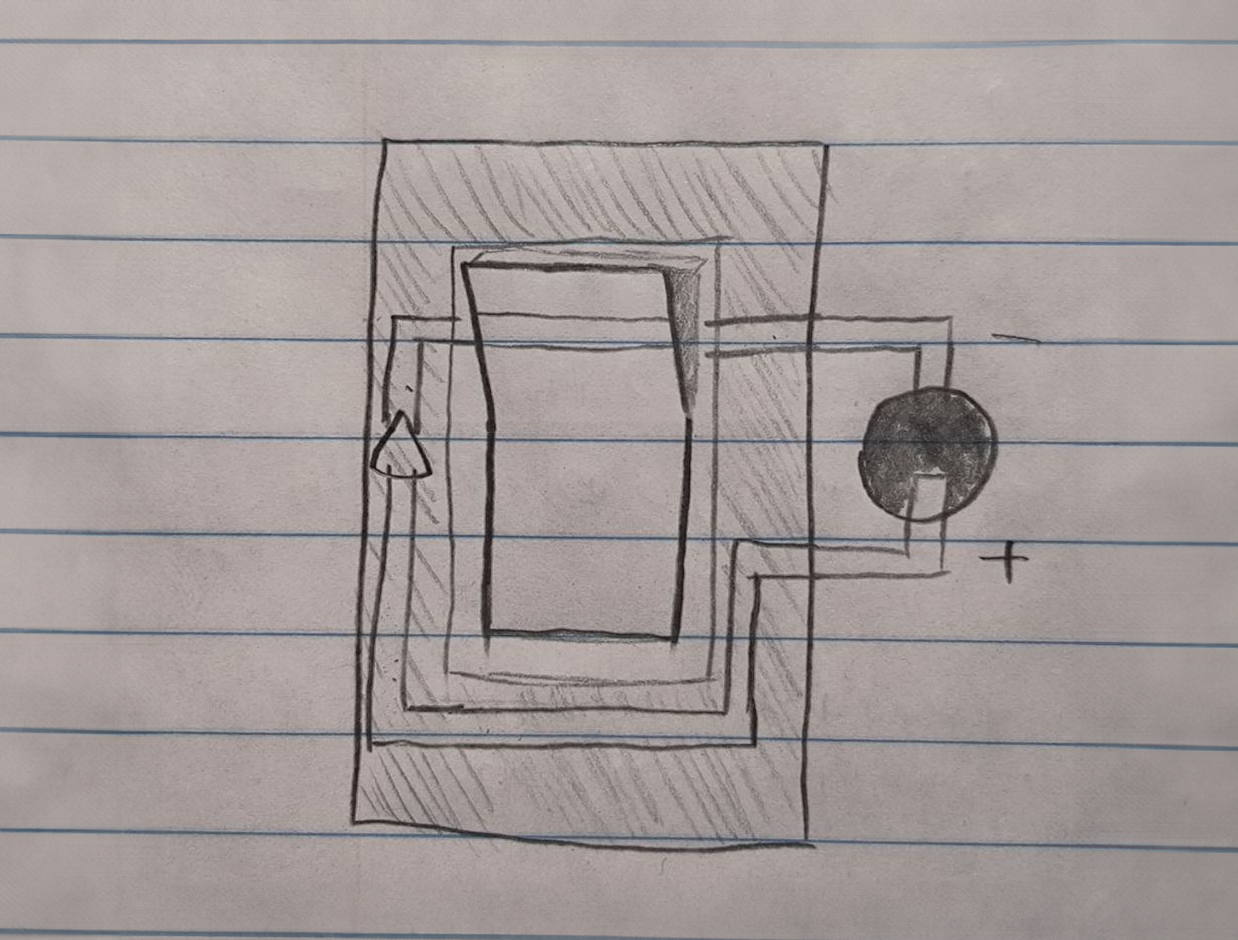

This is a circuit of the Light swither (Light OFF)

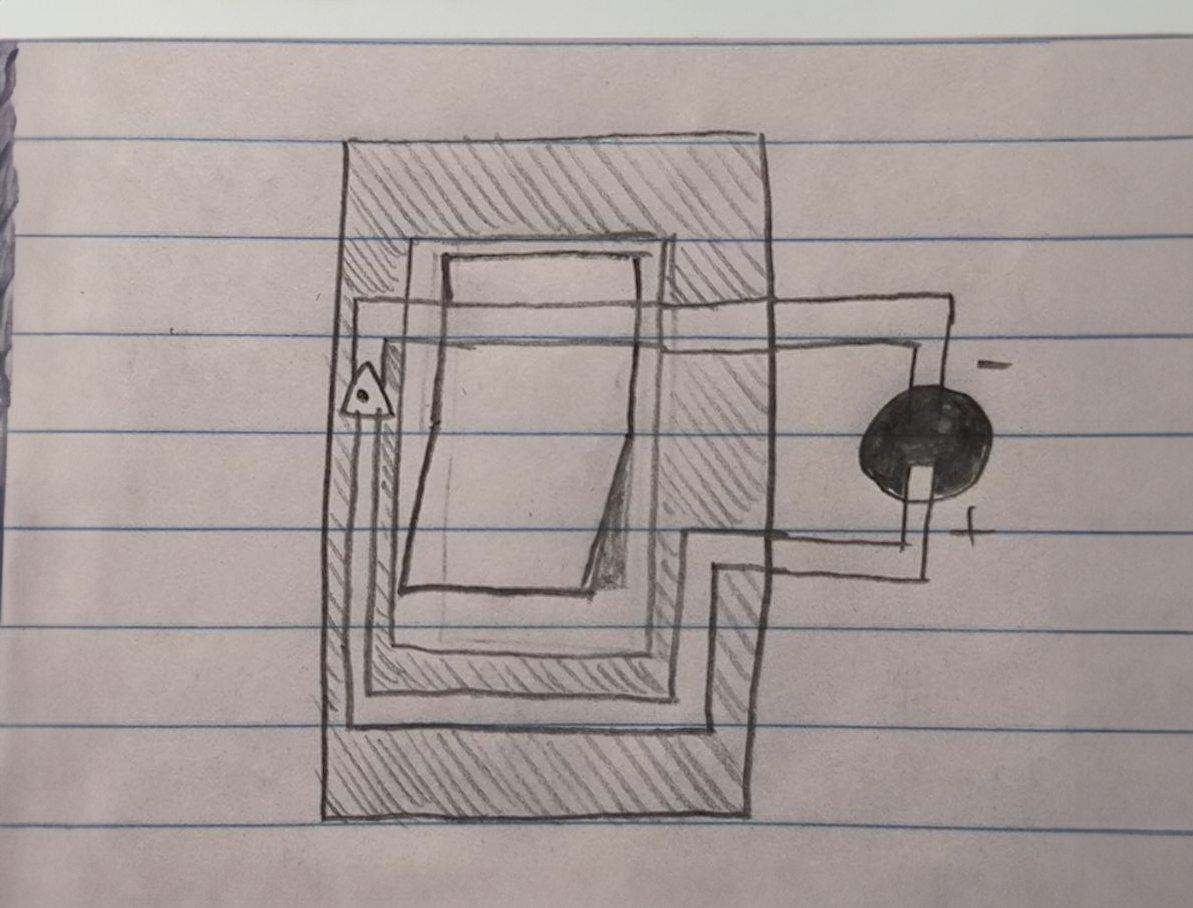

This is a circuit of the Light swither (Light ON)

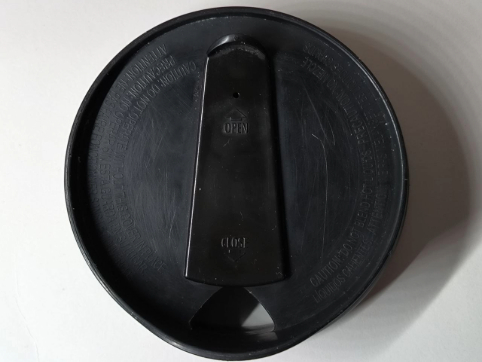

This is a picture of the Blender lid

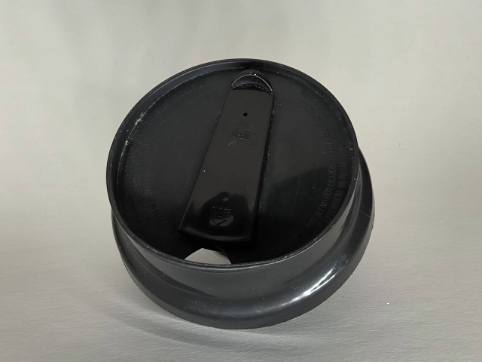

This is a picture of the Blender lid

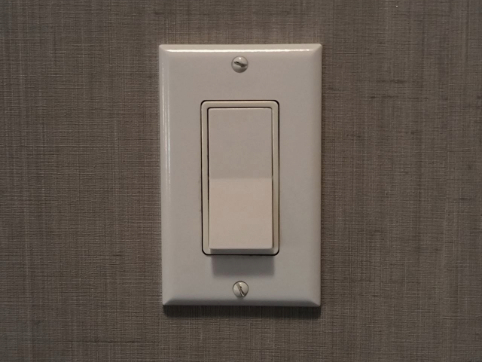

This is a picture of the Light swither (Light ON)

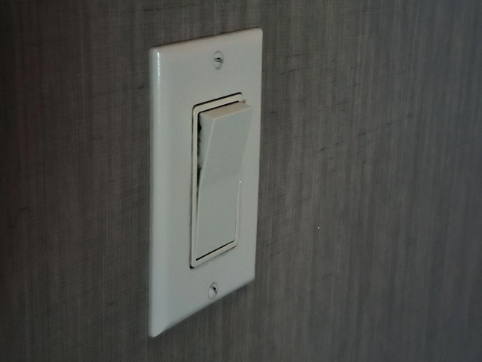

This is a picture of the Light swither (Light OFF)

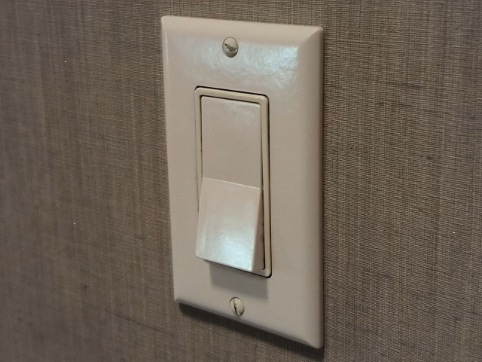

This is a picture of the Light swither

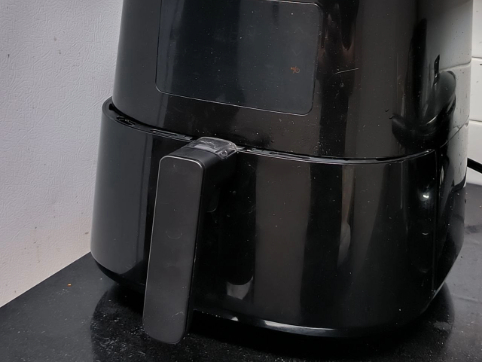

This is a picture of the airfryer

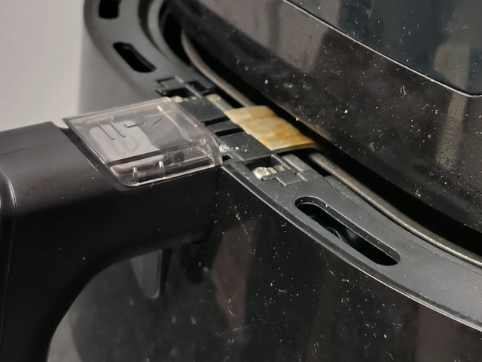

This is a picture of the airfryer (View from the side)

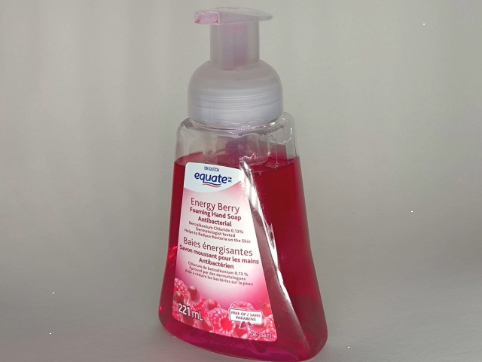

This is a picture of the soap dispenser

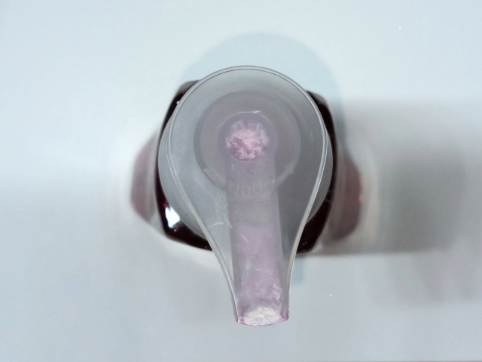

This is a picture of the soap dispenser (View from the top)

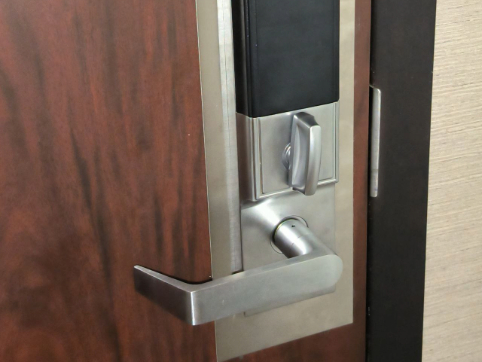

This is a door locker (Unlocked)

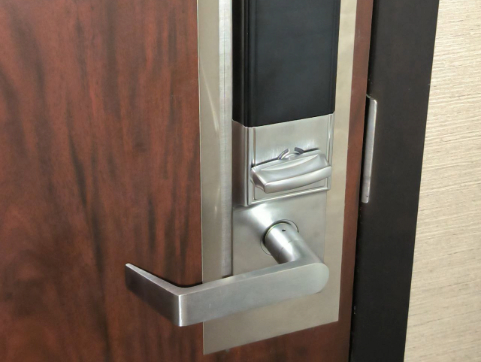

This is a door locker (Locked)

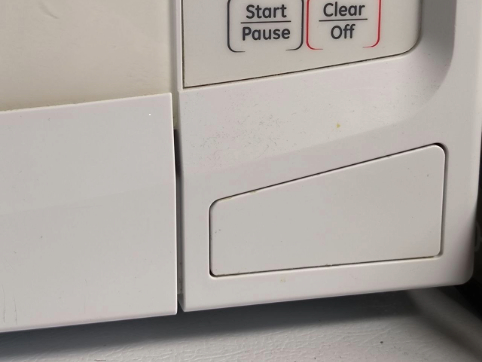

Other example of Affordance

Project 1

Final Project 1 Design

Wearable Interactive Affordance Based Circuit

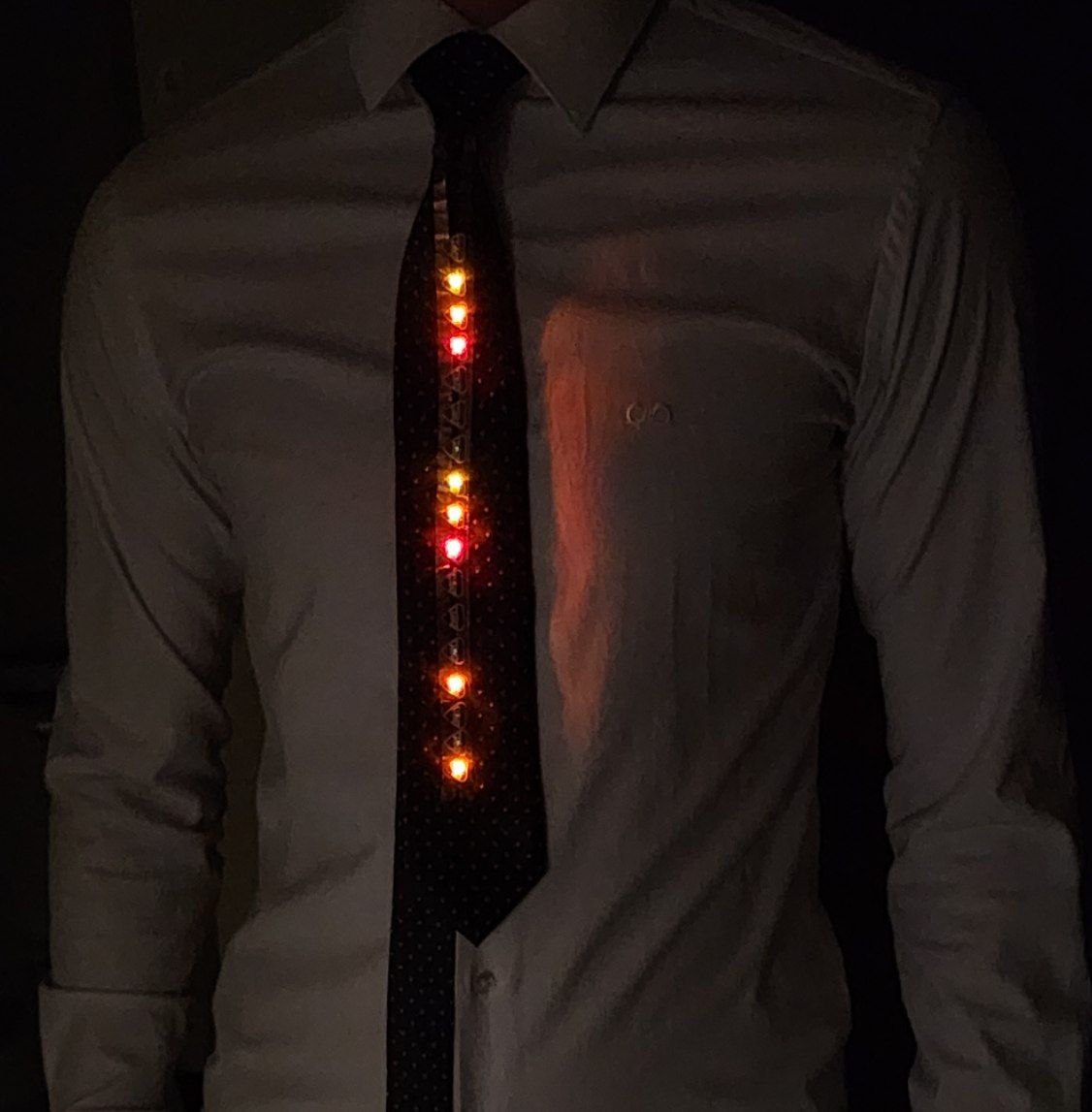

This is my Final Design of the wearable interactive circuit. The tie becomes the interactive element: when tugged or adjusted, it completes the circuit between two conductive points on the shirt collar, lighting up the LED.

Wearable (Tie Circuit)

Non-Wearable Interactive Affordance Based Circuit

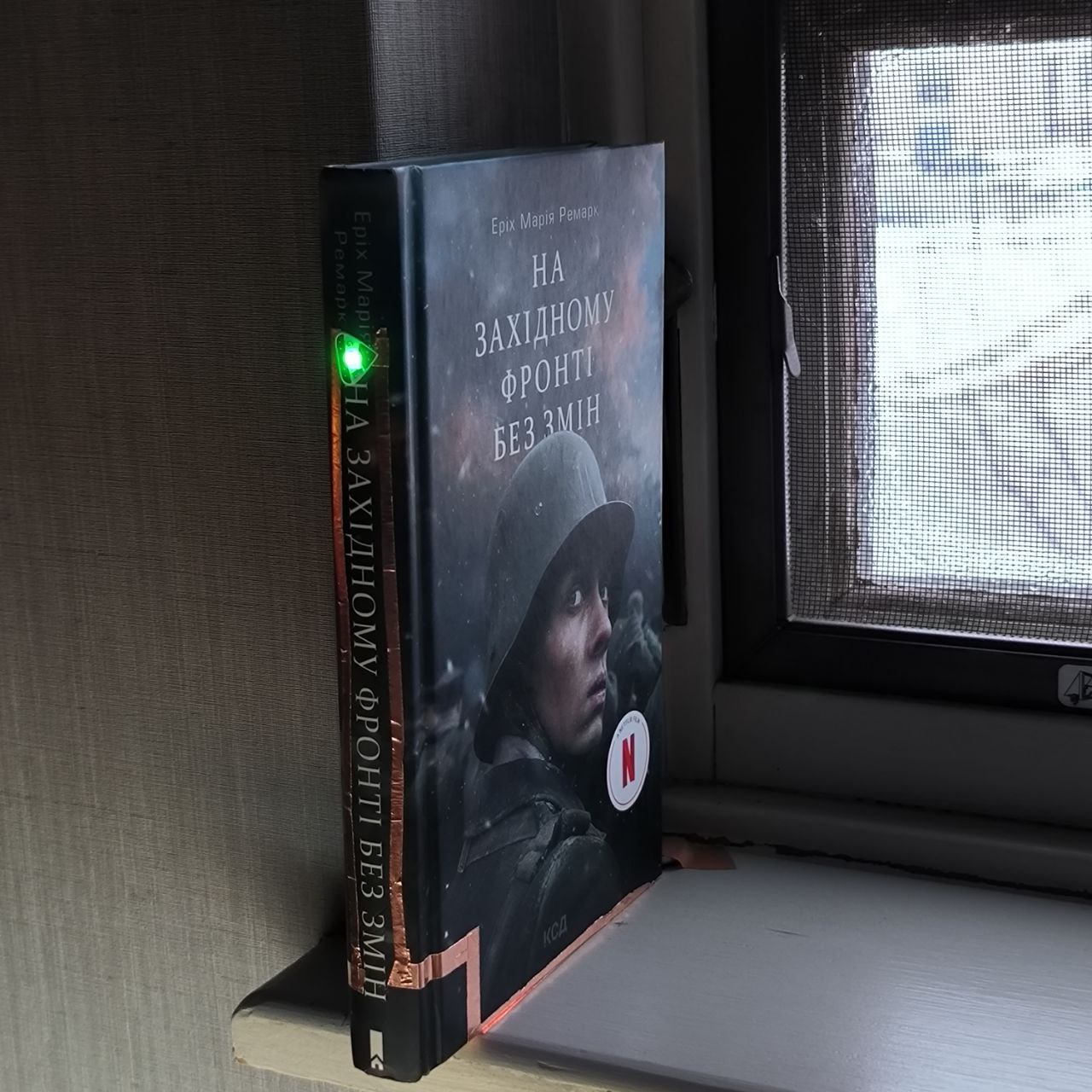

This is my Final Design of the non-wearable circuit. The book spine becomes the interactive element: when it’s put on the shelf, it completes the circuit between two copper tape strips on the spine, lighting up the LED.

Non-Wearable (Book Circuit)
